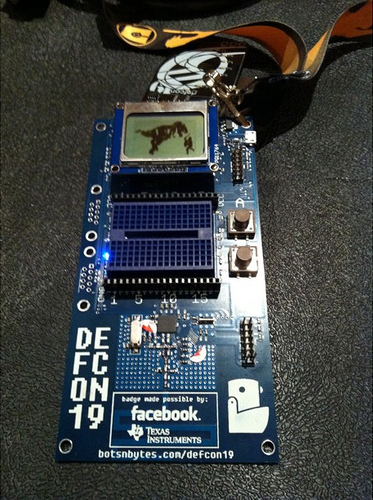

║ The DEF CON 19 Bot Badge was created to help teach the ║▐
║ attendees of DEF CON about hardware and circuit design. The ║▐

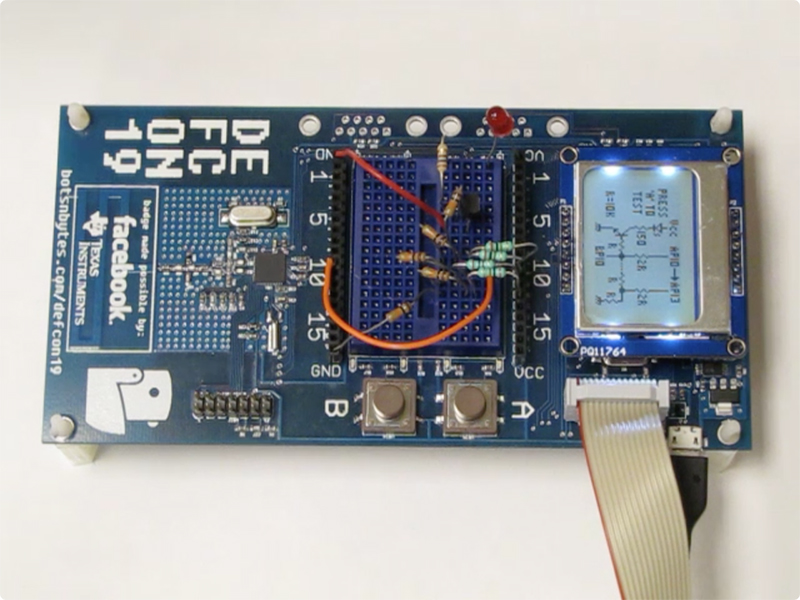

║ badge challenged users to build circuits on the provided ║▐
║ breadboard that could then be tested using the GPIO pins of ║▐
║ the microcontroller. With each correct configuration, the ║▐
║ badge would go to the next level. If the user builds the ║▐
║ circuit incorrectly, the badge will say that the circuit is ║▐
║ incorrect, but the user can then try again. ║▐
║ ║▐
║ The board features: ║▐
║ ║▐
║ - 2 TI MSP430 microcontrollers (MSP430f5438a and CC430) ║▐
║ - 915MHz antenna for badge-to-badge communication ║▐
║ - USB header for terminal game ║▐
║ - 2 serial ports ║▐
║ - SD card reader ║▐
║ - LCD to relay challenges ║▐
║ - bread board for circuit building ║▐
║ - analog I/O ports for testing circuits ║▐
║ - JTAG header for programming/debugging ║▐
║ ║▐
║ As a member of the team, I was in charge of developing the ║▐
║ firmware for the MSP430 that controlled the game and ║▐
║ circuit testing. This included designing the challenges and ║▐
║ their test conditions. I also designed all the graphics for ║▐

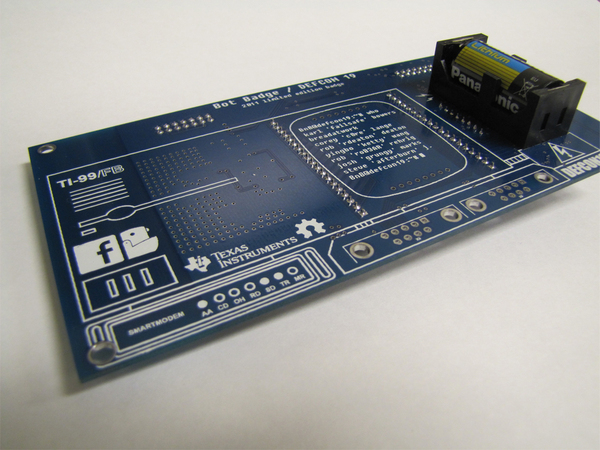

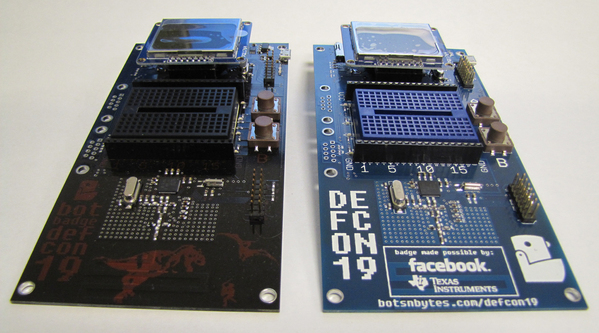

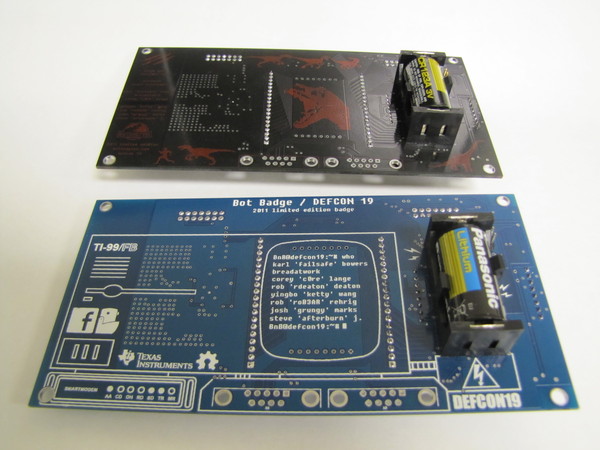

║ the game and the silk screens. As shown below, there were ║▐
║ two versions of the board, one to look like an old modem ║▐
║ and computer setup, and the filled with dinosaurs to match ║▐
║ the game theme. ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
╟┐ ┌╢▐
╟┐ ┌╢▐
