║ For the first time ever, the Hardware hacking Village (HHV) ║▐
║ Capture the Flag (CTF) competition was an official DEF CON ║▐
║ contest for DEF CON 31. The competition was a Jeopardy ║▐
║ style CTF, taking place over two days (Friday and ║▐
║ Saturday), 8 hours each day. Given that our CTF would be ║▐
║ announced around DEF CON, we weren't sure what to expect, ║▐
║ but we wanted to be prepared with content and support, so ║▐
║ our team grew by a few members, and we accepted a few ║▐
║ community challenges to be featured in the event. ║▐
║ ║▐
║ The competition featured a main challenge track, and it ║▐
║ continued the previous year's theme by adding to the lore ║▐
║ that HHV technologies (a fictional organization) had ║▐

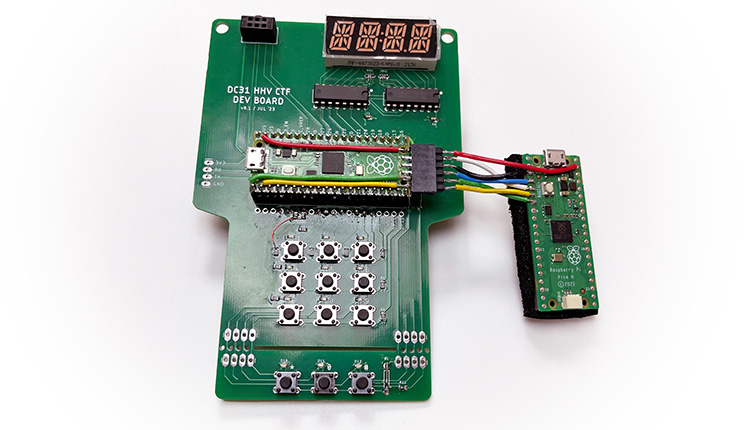

║ released a new 'custom' microcontroller, the HHVDC31 (a ║▐
║ Raspberry Pi Pico development board hidden by a 3D printed ║▐
║ cover with orientation marker, partnumber, and date code) ║▐
║ specifically for driving electronic conference badges. As ║▐
║ outlined in the HHVDC31's datasheet, the controller ║▐
║ supports add-ons and now includes the Badgiimo protocol. ║▐
║ Badgiimos are add-ons for badge add-ons that can unlock new ║▐
║ functionality for a badge when plugged in. As hinted by the ║▐
║ name, the Badgiimos take inspiration from Nintendo's Amiibo ║▐
║ figurines, toy characters that unlock new abilities and ║▐
║ in-game items for select Nintendo WiiU, Switch, and 3DS ║▐
║ games. ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐

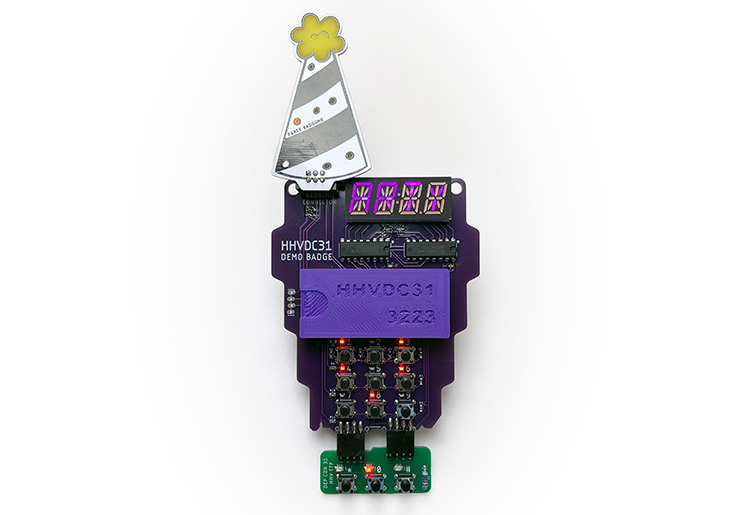

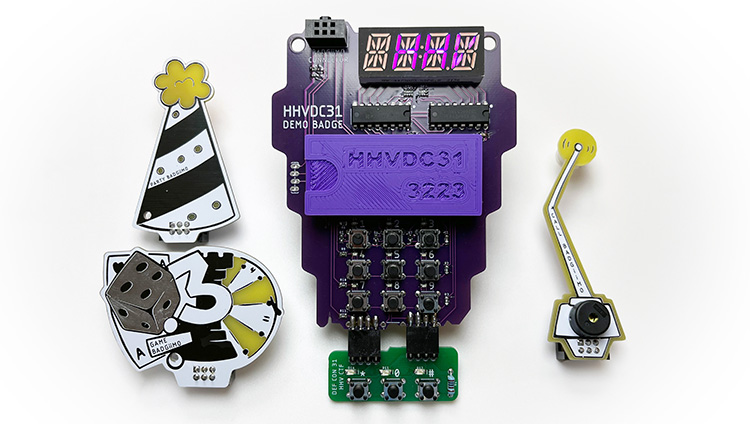

║ A new custom CTF electronic conference badge was created ║▐
║ for the competition to host the Badgiimo challenges (and ║▐

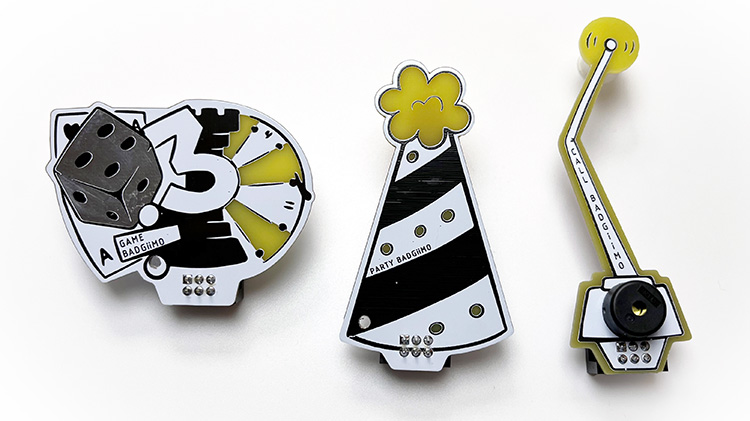

║ other hidden challenges). Three Badgiimos were designed for ║▐
║ the competition, the Call Badgiimo, the Party Badgiimo, and ║▐
║ the Game Badgiimo. The Call Badgiimo changed the CTF badge ║▐
║ into a pseudo phone, participants can use the keypad ║▐
║ interface to make (fake) calls. The Party Badgiimo makes ║▐
║ the badge LEDs start blinking in a fast party pattern. The ║▐
║ Game Badgiimo, was available as another data point in the ║▐
║ competition, but didn't change functionality beyond ║▐
║ changing the 14-segment displays to show 'GAME'. ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ The Badgiimos had challenges associated with the ║▐
║ functionality they unlocked, but the greater challenge was ║▐
║ breaking the Badgiimo protocol to create a custom add-on ║▐
║ that triggered the functionality of the unreleased Uber ║▐
║ Badgiimo. Once plugged in, an add-on that authenticated as ║▐
║ the Uber Badgiimo would display a high-point flag for the ║▐
║ competition. ║▐
║ ║▐

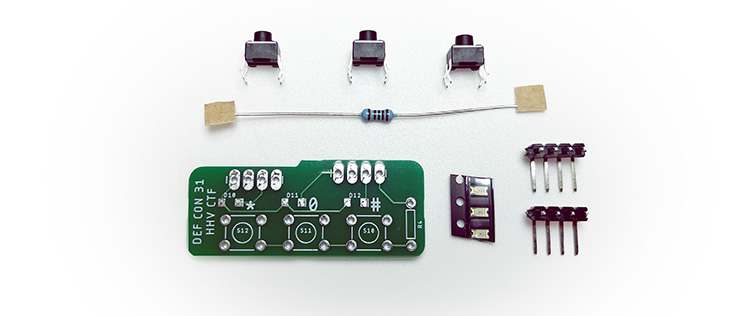

║ Continuing the tradition of having a takeaway soldering ║▐
║ challenge, participants were given parts to build an add-on ║▐
║ for the bottom of the electronic badge to re-add features ║▐
║ that had been "accidentally" severed prior to the CTF ║▐
║ starting. Building this add-on was necessary for solving ║▐
║ the Call and Party Badgiimo challenges since they required ║▐
║ the use of the buttons and LEDs. ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ Lastly, the CTF badge contained a handful of interface ║▐
║ discovery/communication challenges. Hints were given in the ║▐
║ datasheet to point participants towards these challenges. ║▐
║ ║▐
║ I received humbling feedback from multiple contestants that ║▐
║ they had spent their entire DEF CON competing in the HHV ║▐
║ CTF (and did not regret it). While we've had relatively ║▐
║ large numbers of participants compete in our CTF over the ║▐
║ past few years, never has anyone spent their entire time ║▐
║ working on our challenges. We also saw an astonishing 60% ║▐
║ growth in participation. Every challenge was solved at ║▐
║ least once, except for one, so it felt like challenge ║▐
║ quantity and difficulty levels were appropriate. ║▐
║ ║▐
║ We had eight badges available for participants to interface ║▐
║ with, and that seemed to be too few. Often someone would ║▐
║ want to work on challenges, but there weren't any available ║▐
║ badges to hack on (all badges were set up as ║▐
║ first-come-first-served). It's expensive to produce the ║▐
║ hardware for the competition, especially since we don't ║▐
║ necessarily have sponsors, and that leads to limited ║▐
║ numbers of hardware we can provide. I hope to find a way to ║▐
║ relieve the bottleneck that physically-based hardware ║▐
║ hacking challenges imposes for next years' CTF. ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ More details about the DC31 HHV CTF can be found on the DC ║▐
║ HHV challenge website! ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
╟┐ ┌╢▐
╟┐ ┌╢▐
